Multi-digit LED display (Multiplexed)

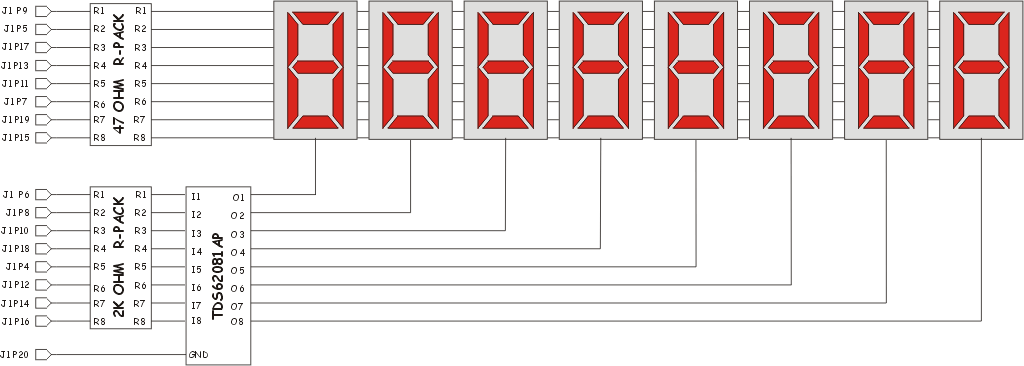

This is a simple schematic of the multiplexed LED display. (you will probably need to extend your browser's window to see all of it at once.
Copyright © 2001, Chuck McManis, All Rights Reserved
